Vibratory Polishing Machine

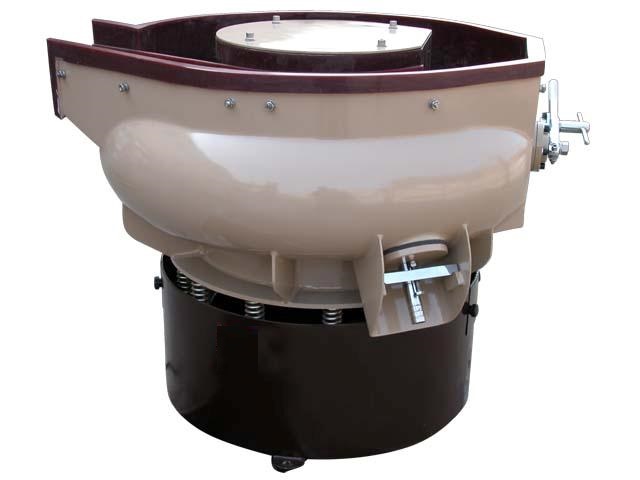

Bowl Shape Vibratory Polishing Machine With Parts Separator And CE

Bowl Shape Vibratory Polishing Machine With Parts Separator And CE

Shuanglin Hengxing, one of the leading China bowl shape vibratory polishing machine with parts separator and ce manufacturers and suppliers, is waiting for you to purchase low price bowl shape vibratory polishing machine with parts separator and ce from our factory. Bowl shape Vibratory...

Chat Now

Shuanglin Hengxing, one of the leading China bowl shape vibratory polishing machine with parts separator and ce manufacturers and suppliers, is waiting for you to purchase low price bowl shape vibratory polishing machine with parts separator and ce from our factory.

Bowl shape Vibratory polishing Machine with parts separator and CE is specially suitable for chamfering,deburring,improving the surface asperity,raising the integral appearance quality of the various kinds of metal and nonmetal parts and components(such as bearing rollers,bearing rings,bearing  bracket,auto parts and gears,etc.)and this machine is a  necessary equipment preferred by the trades and  professions of airplane manufacturing,automobiles,bearings, textile and arts and crafts.etc.
1. Structure:
vibratory polishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.
Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor, springs and eccentric blocks.
Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of work pieces on vessel. (For VBA series, there is a separator on the vessel to separate the work pieces from the stones. )
Electrical cabinet: Operate the machine by buttons on the control panel.
Basement: It is weld of steel, and it has springs to hold the vessel.
2. Function:
vibratory polishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface improvement, pre plating finishing all types of components including fully machined parts in metals & plastics
3. Working Principle
vibratory polishing machine for Metal Working has a ring chamber to hold abrasives (stones) and work pieces. When the machine is working, it makes three-D high frequency vibration. The grinding stones and the work pieces are rolling spirally forward and they are grinding each other during the rolling. This makes the work pieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.
4. Packing details.
vibratory polishing machine is firmly packed in a plywood case in a whole. And the machine will be wrapped with thin films to protect the outside paint from scraping.


Model

GSJ120

GSJ200

GSJ300

GSJ450

GSJ600

GSJ900

GSJ1200

Capacity (L)

120

200

300

450

600

900

1200

Size (mm)

A

920

860

940

1180

1260

1300

1500



B

980

1130

1280

1440

1590

1950

1980



C

350

560

480

560

580

930

950



D

290

270

370

420

480

480

480

Motor Power (kw)

1.5 / 2.2

2.2

3.7 / 5'0

3.7 /5.0

5.5 /7.5

7.5 / 11

11/15

Weight (kg)

300

400

600

700

1200

1500

2000
