1. Structure:
vibratory polishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement.
Inertial vibrator: This is the vibrating source of the machine, it is composed Of vibratory motor, springs and eccentric blocks.
Vessel: The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of work pieces on vessel. (For VBA series, there is a separator on the vessel to separate the work pieces from the stones. )
Electrical cabinet: Operate the machine by buttons on the control panel.
Basement: It is weld of steel, and it has springs to hold the vessel.
2. Function:
vibratory polishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface improvement, pre plating finishing all types of components including fully machined parts in metals & plastics
3. Working Principle
vibratory polishing machine for Metal Working has a ring chamber to hold abrasives (stones) and work pieces. When the machine is working, it makes three-D high frequency vibration. The grinding stones and the work pieces are rolling spirally forward and they are grinding each other during the rolling. This makes the work pieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.
4. Packing details.
vibratory polishing machine is firmly packed in a plywood case in a whole. And the machine will be wrapped with thin films to protect the outside paint from scraping.

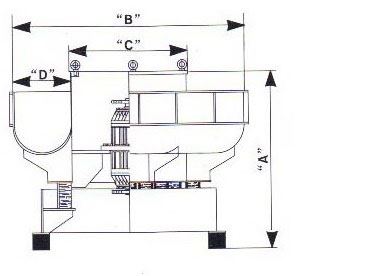

Model | GSJ120 | GSJ200 | GSJ300 | GSJ450 | GSJ600 | GSJ900 | GSJ1200 | |
Capacity (L) | 120 | 200 | 300 | 450 | 600 | 900 | 1200 | |
Size (mm) | A | 920 | 860 | 940 | 1180 | 1260 | 1300 | 1500 |
B | 980 | 1130 | 1280 | 1440 | 1590 | 1950 | 1980 | |
C | 350 | 560 | 480 | 560 | 580 | 930 | 950 | |
D | 290 | 270 | 370 | 420 | 480 | 480 | 480 | |
Motor Power (kw) | 1.5 / 2.2 | 2.2 | 3.7 / 5'0 | 3.7 /5.0 | 5.5 /7.5 | 7.5 / 11 | 11/15 | |
Weight (kg) | 300 | 400 | 600 | 700 | 1200 | 1500 | 2000 | |
